Set up a calculated space

In order to set up a calculated space it is necessary to set up a set of nodes that correspond with the surface.

To set up nodes, follow the steps below.

1. Click the create master node icon.


2. Give the node a name, for example "surface".
3. You can select a style using the "TS" button

   > Click here on how to edit text styles
4. Create a container node, for example "SHOB".


5. Select the zones you want to add to the node.





   > Click here on how to create a zone

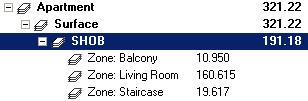

The master node now contains a container node to which you can add zones.

The data will be updated automatically if you make any changes in your model.
