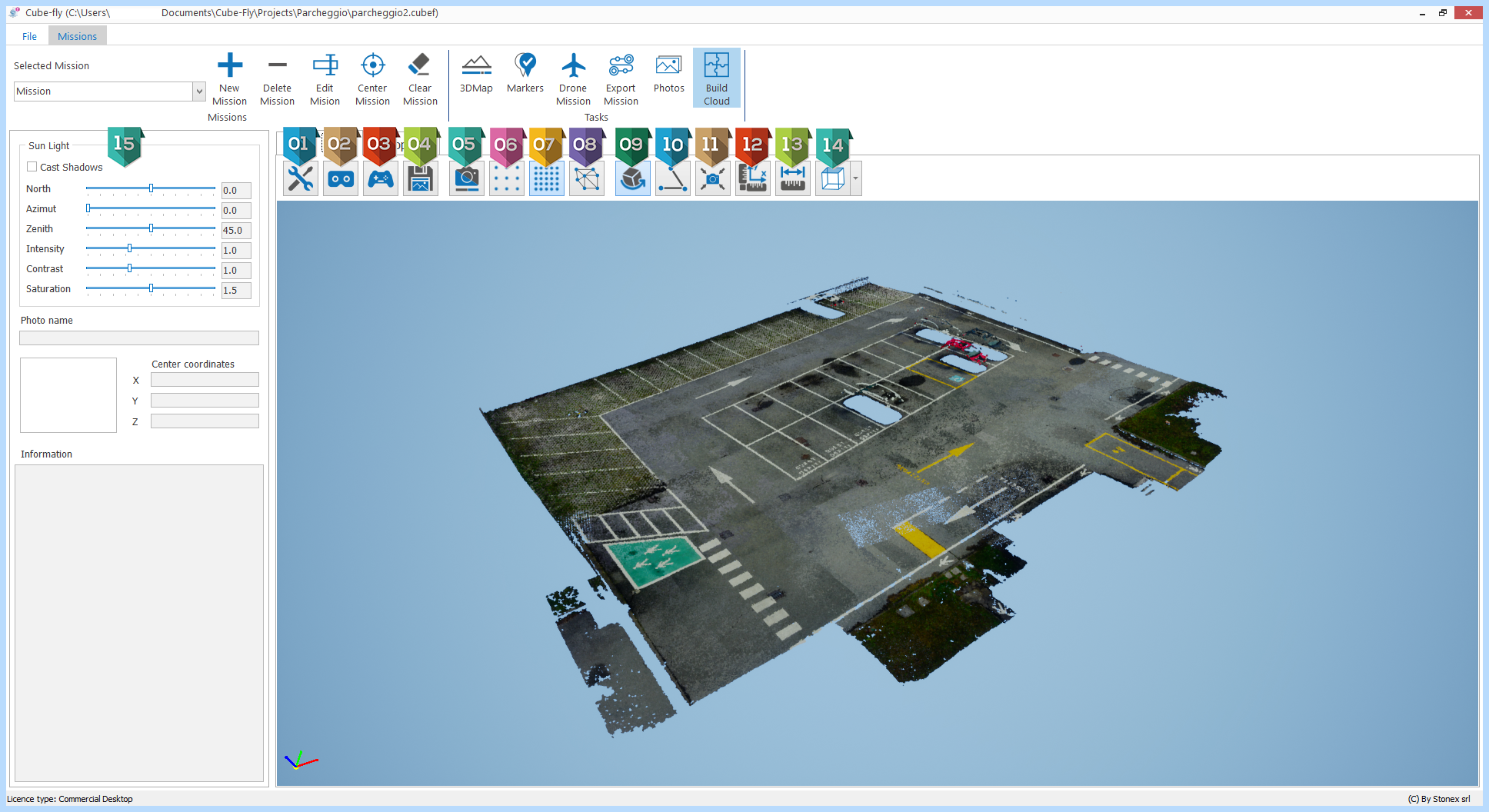

Model
It opens the Render options dialog. |
|
It enables the virtual reality mode. |
|
It enables the game mode. |
|
It takes a screenshot of the 3D view which will be saved as *.jpg image. |
|
It shows or hides the camera positions. Camera sizes can be reduced on the Render options. |
|
It opens or hides the sparse cloud. |
|
It opens or hides the dense cloud. |
|
It opens or hides the mesh. |
|
It enables the 3D free view. |
|
It allows to define points/poly-lines on the model. Refer to Virtual Survey. |
|

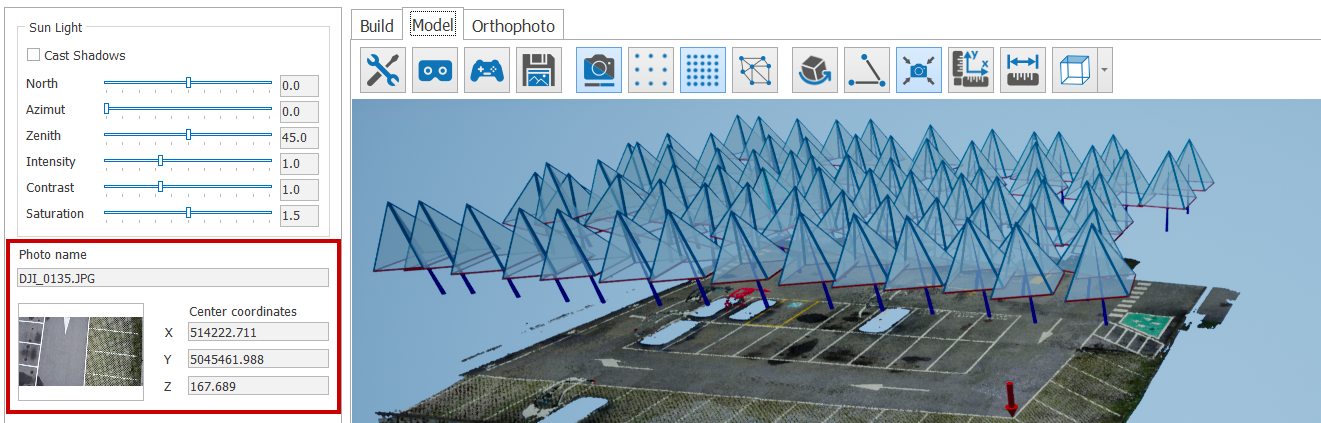

It allows to pick a photo, only if the cameras are shown (5). Select the photo by pressing Ctrl+left-click of the mouse. Photo will be shown on the right, together with its name and center coordinates: |
|
It allows to calculate coordinates of a point. |
|
It allows to calculate distances. Keep Ctrl pressed while you define the points |
|

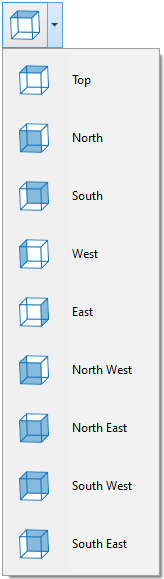

It allows to change view: |
|
Change sun light effects on point cloud and mesh. |
