Specifying a Room Number
Identify rooms and assign numbers to rooms in your model.
\roomnum

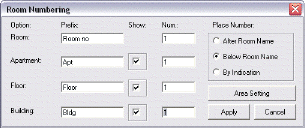

You place room numbers using the room numbering dialog box that contains options for labeling and numbering rooms. You can include prefix text to indicate numbering by room, apartment, floor or building, and set consecutive room numbering. If you need to use room names in your model, it is a good idea to place them before assigning room numbers. Numbers are placed in relation to room names: below (default) or after.
option
List of the room labels and numbers options: rooms, apartments, floors and buildings.
label
Abbreviation for each of the options used for the room numbering—can be edited. You can insert a space before each prefix to improve the legibility of the label on the screen.
show
Select room label options (above) for text display.
number
Use the default number or type the starting number—subsequent room numbers increase automatically.
area setting
Open the area calculation settings dialog box to change the default settings (see below).
place number
Determine location of the number: after or below room name or by indication.
If you are numbering a room that has not been assigned a room name, you identify the room polygon automatically by clicking inside it. Alternatively, you can identify the room manually by indicating wall by wall.
You can use the Prefix label for rapid naming and consecutive numbering of multiple rooms, for example: to label a large number of offices: office1, office2, etc.
