Solarize

$image\SHORTCUT.gif$ Back to the Main Topic

Solarize

This command enables you to merge the negative and positive of an image (like in photography by brief exposure to light while developing):

\imgedit Solarize@

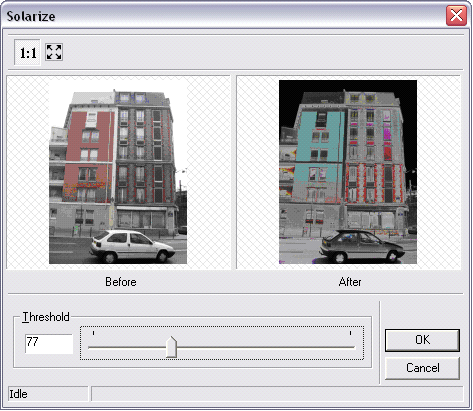

The system asks you to indicate an image to be modified. After you confirm your choice of image, ARC+ opens a dialog box that helps you control and view the modification:

$image\ebx_-1477981484.gif$

This dialog box contains two "Before-After" windows for a dynamic preview of the modification.

The $image\ebx_2025542677.gif$ button enables you to view the entire image; the $image\ebx_-896310760.gif$ button enables you to view a detail of the image in actual pixel size.

The Factor potentiometer enables you to enter a value between 0 (maximum negative) and 255 (maximum positive).

You can also enter a value (between 0 and 255) in the numerical range located to the left of the potentiometer.

Click Ok to modify image or click Cancel to cancel the modification and exit the dialog box.

Before applying the modification, the system asks you to indicate a modification setting: apply the change only to the selected image (frame) or to the indicated image (frame) and all its copies.
