Swap Colors

$image\SHORTCUT.gif$ Back to the Main Topic

Swap Colors

This command enables you to swap colors of an image.

\imgedit SwapColors@

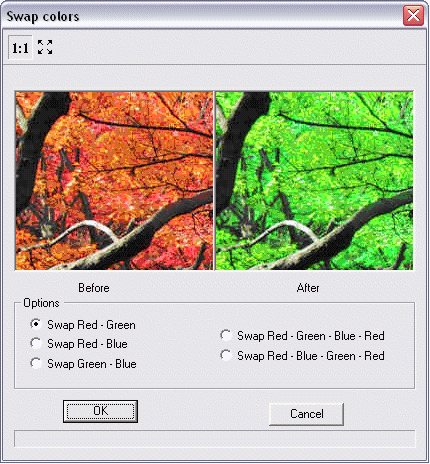

The system asks you to indicate an image to be modified. After you confirm your choice of image, ARC+ opens a dialog box that helps you control and view the modification:

$image\ebx_998209016.gif$

This dialog box contains two "Before-After" windows for a dynamic preview of the modification.

The $image\ebx_2025542677.gif$ button enables you to view the entire image; the $image\ebx_-896310760.gif$ button enables you to view a detail of the image in actual pixel size.

The Options section gives you five options to swap colors:

1. Change all greens to red and vice versa
2. Change all reds to blue and vice versa
3. Change all greens to blue and vice versa
4. Change the reds to green, blues to red and vice versa
5. Change the reds to blue, greens to red and vice versa

Click Ok to modify the image or click Cancel to cancel the modification and exit the dialog box.

Before applying the modification, the system asks you to indicate a modification setting: apply the change only to the selected image (frame) or to the indicated image (frame) and all its copies.
