Filling a Polygon with a Pattern

Fill a polygon with an area fill pattern.

\patrn

Specify the pattern name or press Enter to display the graphic library.

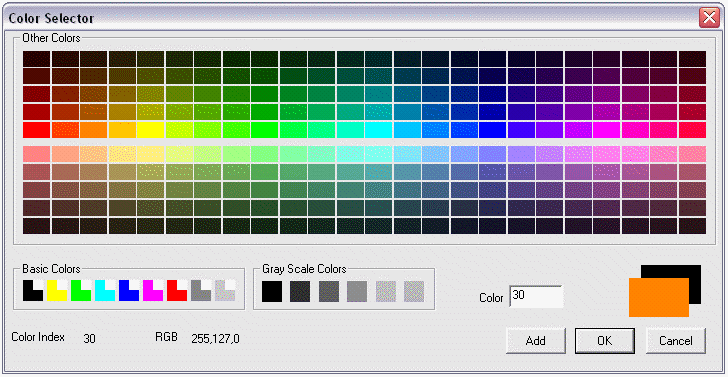

Select the pattern color using the color selector:

$image\ebx_-421292539.gif$

You can select from 255 ARC+ colors. Click on the color you want, then on OK to validate it.

Specify a scale factor for the pattern unit (> 1 to enlarge, < 1 to reduce). Indicate two points defining an origin and a direction for the pattern. Indicate the polygon to be filled.

The pattern is created in the model. The origin point and X axis of one repetition of the motif coincide with the origin and direction you indicated.

$image\ebx_-726553584.gif$ HINT If redrawing the pattern requires excessive time on your screen, specify a larger scale factor for the pattern. Alternatively, blank the pattern after it is created (see Selection, Blanking/unblanking all nonselected entities, \blnk command).
