Remap HistoEqual

This command enables you to convert an image from RGB color space to YUV or GRAY color spaces, used in video formats.

\imgedit HistoEqual@

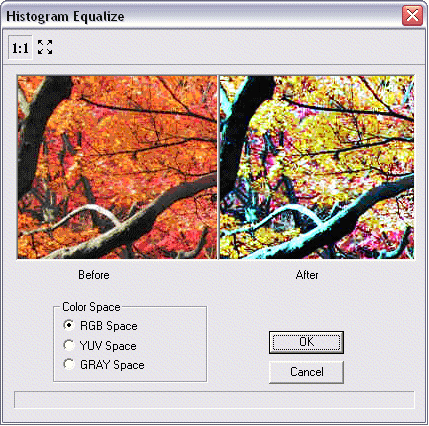

The system asks you to indicate an image to be modified. After you confirm your choice of image, ARC+ opens a dialog box that helps you control and view the modification:

$image\ebx_490253244.gif$

This dialog box contains two "Before-After" windows for a dynamic preview of the modification.

The $image\ebx_1549471455.gif$ button enables you to view the entire image; the $image\ebx_1859967965.gif$ button enables you to view a detail of the image in actual pixel size.

In the Color space section, select one of the options from RGB, YUV and GRAY. The image is modified according to the selected color space.

Click Ok to modify the image or click Cancel to cancel the modification and exit the dialog box.

Before applying the modification, the system asks you to indicate a modification setting: apply the change only to the selected image (frame) or to the indicated image (frame) and all its copies.
