Printing on paper

Follow the steps below to print the drawing on paper through a printer or a plotter

1 Check the Printer/Plotter box in the Device/Image section of the Print Manager

2 Select the printer from the drop down list available under the Name option

$image\ebx_-1152060152.gif$

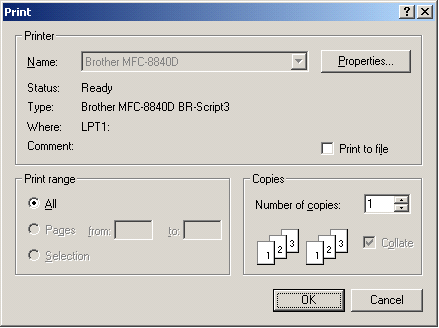

3 Click on the $image\ebx_-969914418.gif$ button. A dialog box appears to enable you to configure the selected printer by the options available in the currently installed driver:

$image\ebx_957715300.gif$

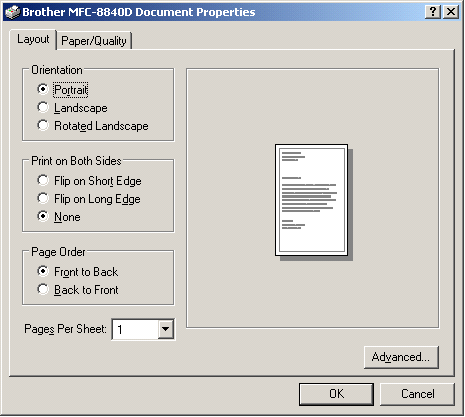

4 Clicking on $image\ebx_-969914418.gif$ button allows you to configure the selected printer driver

$image\ebx_266504015.gif$

5 Once the printer is configured, click OK to return to the Print Manager.

6 The Print Manager enables you to configure other printing parameters as well. (See details below).

7 After the printer parameters are configured click on $image\ebx_560334434.gif$ to print the drawing.

$image\ebx_1693072387.gif$ REMARK : The new configuration defined by you is saved with the same name. If no name has been specified it is saved as Default.
