Placing an Entire Drawing — Specified Scaling

Place a specified scaling drawing on a drawing sheet.

image\ebx_1693072387.gif NOTE This command is usually activated by \dsgplace





\dpscl





(non-menu command)

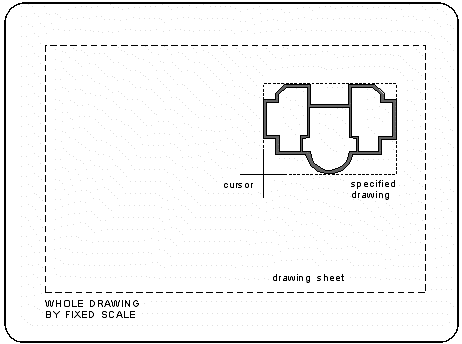

Specify the name of the file in a dialog box and the scale at which it is to be placed. A rectangle representing the drawing at the specified scale is attached to the cursor. Move the cursor to place the drawing on the sheet. If the size of the rectangle is unsatisfactory, press Enter to specify a new scale.

To help you place the drawing, you can change the origin of the frame, i.e. the point at which the rectangle is attached to the cursor. Press Alt+2 to change the position of the minimum enclosing rectangle of the drawing in relation to the cursor. There are five possible locations:







Lower left corner

Center point

Upper left corner

Upper right corner

Lower right corner

The drawing appears at the specified location and scale and is framed by a broken line.
