Placing an Entire Drawing – Automatic Scaling

Place a drawing on a drawing sheet by defining a frame or filling the whole sheet.

image\ebx_1693072387.gif NOTE This command is usually activated by \dsgplace



\dpaut





(non-menu command)



Specify the name of the file to be placed in a dialog box.



Choose one of the following options:

Place the drawing by defining a rectangle on the sheet.

Maximize the drawing to fit the whole sheet

By Rectangle

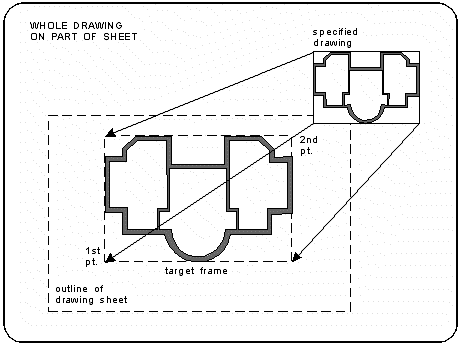

Specify the first and opposite points of a target frame for the drawing. The rectangle stretched between the first point and the cursor position represents the shape of the drawing. To redefine the first point, press Enter before specifying the opposite point.

The specified drawing appears at a scale determined by the size of the target frame.
