Exporting in VRML Format
VRML (Virtual Reality Modeling Language) is a language used for describing more or less elaborate scenes that include realistic 3D objects and displaying them on your Internet browser’s screen thanks to specialized software (browser) to browse them in real-time as required and study them from any angle as if you were actually present there.
VRML files have WRL extension; you will require a browser to load and view these files. Contact your information center to know about the downloadable products compatible with your work environment.
\gsr2wrl
IMPORTANT : This command functions only in RENDER mode. A dialog box may pop-up asking you to confirm whether you want to start this mode.
To create VRML file, the system should create a temporary GSR file from the current model.

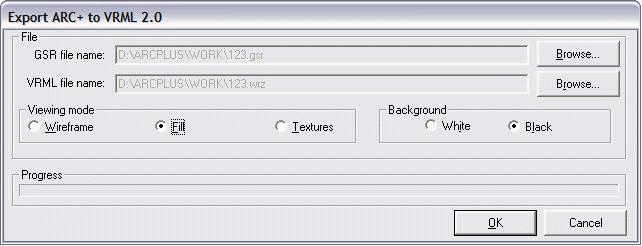

This dialog box includes various parts:
Name of GSR file
By default, the name is defined if you export the current model directly. Then you need not worry about creating the GSR file. If you want to convert using a different model, click on Browse… and select the name of the GSR file.
Name of VRML file
The name of the file to be created is specified in this part: Click on Browse… and specify the name and location of the VRML file.
Viewing mode
The type of information to be saved is specified in this part:
Wire frame: The VRML model will be made of simple wire polygons having no color or texture.
Fill: The VRML model will be made of color filled polygons.
Textures: The VRML model will be made of textured polygons.
Background
This option is used for selecting the background color.
