Dimension Lines for an Ellipse

This command allows you to create dimension lines for an ellipse.

\dimel

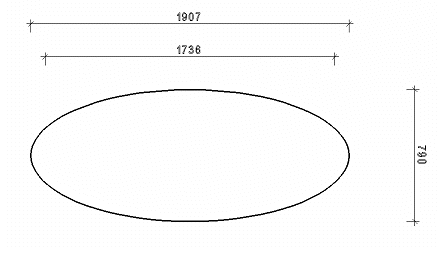

Indicate the ellipse to be measured. The ellipse dimensions will appear as follows:

The three dimensions are:

Length of the major axis

Length of the minor axis

Length between the foci
