Changing Line Attributes
Change the type, color, and width attributes of the selected entities. You can change entities individually or in a selection group.
\uline
If you intend to change the attributes of a selection group, select the entities before using this command.
Choose the attributes to update, and define the new attribute values:
1-type Change the line type of a selection group according to the following dialogue box:

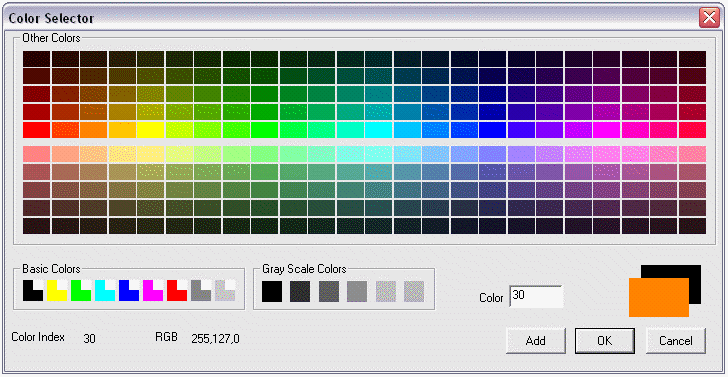

2-color Change the color of a group of entities. Click on the color selector to display the ARC+ color list.
You can choose between the 255 colors of ARC+. Click on the color of your choice, and then click OK to assign it to the entity to update.
3-width Change the line thickness of a selected group of entities: 1=thin line, 2=thick line. Indicate and confirm the entity to be updated.
4-by sample Copy the attributes of a sample entity to another.
5-all This option updates the line type, color and width of a selected group of entities in a single operation. Write the line type, color and width values as described in options 1 to 3.
6-dialog box Set any or all of the line attributes graphically using the dialog box.
State whether you want to update individual entities or a selection group. If you choose individual entities, indicate the entities.
The entities change to the specified attributes. The changes in a selection group are seen only after deselecting.
