Adjusting the Drawing Sheet

This command helps to adjust the size of the drawing sheet and its orientation.

$image\ebx_-1476694655.gif$

\dpsiz

In the new pull-down menu:

Edition

Edit DSG

Page Configuration

In the old pull-down menu:

DSG

Edit Sheet

Change Sheet Size

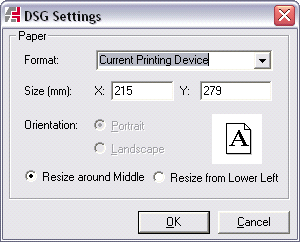

The following dialog box opens:

$image\ebx_-1294830166.gif$

Format: You can choose another format from the pull-down list or can set it manually.

Size: The size of the sheet is set manually by entering the millimetric values for the X and Y dimensions. The current printing device does not allow you to change this setting.

Orientation Choose Portrait or Landscape. If you are using the current printing device, you cannot change this setting.
