ARC+ EVO Screen

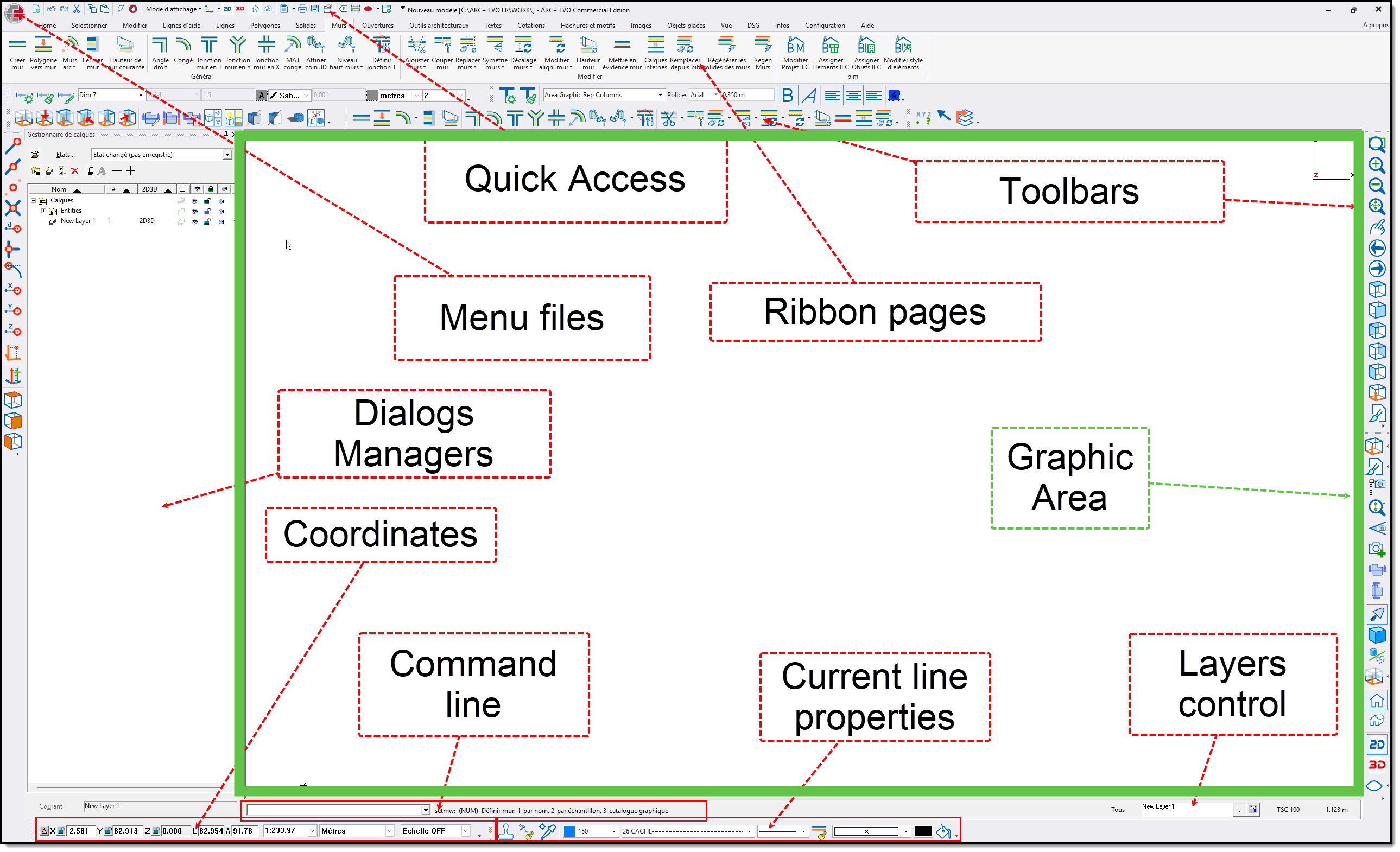

Thi is the ARC+ EVO screen

The Graphic Area window is the main display area for your work.

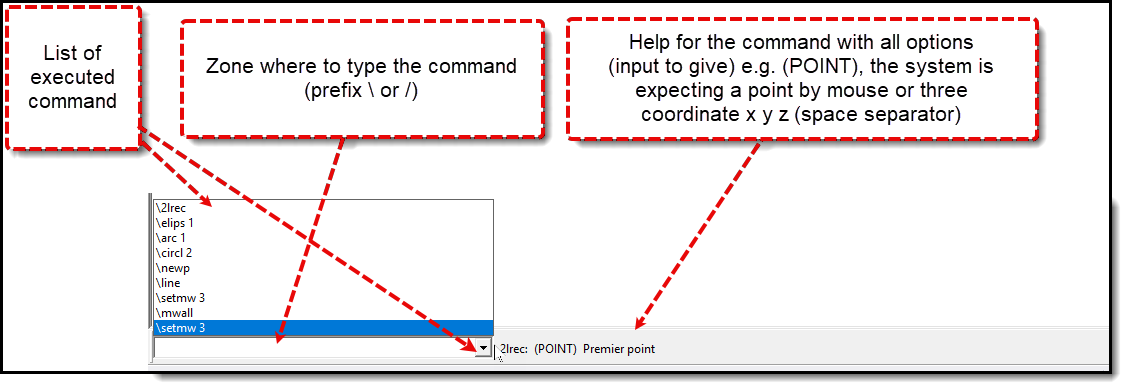

Input line

The input line is used to enter the commands by hand

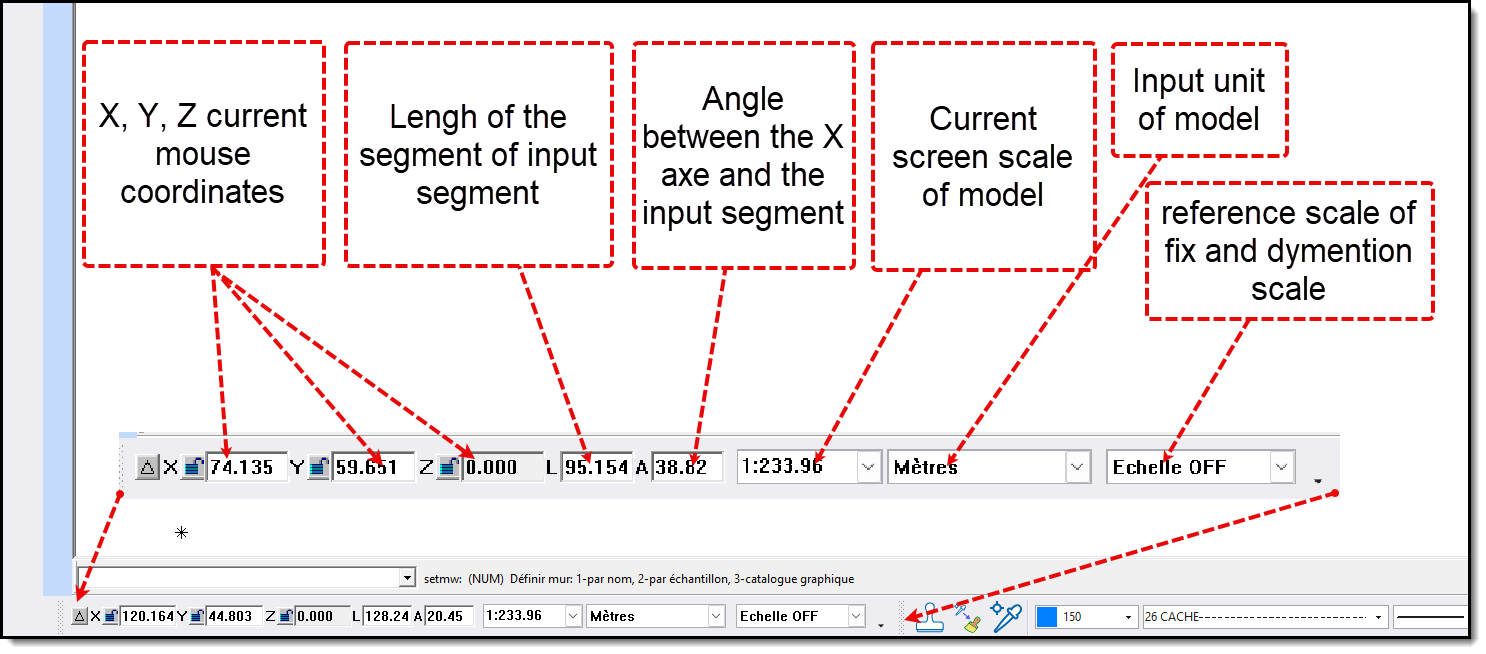

The status Bar of coordinates

The status line displays the current cursor position, scale and orthogonal mode.

The different elements comprising the ARC+ screen are discussed in detail in the following sections.

The Working Window

 A graphic showing the major axes, that can be displayed or hidden by choice, is displayed at the top right corner of the screen. The two axes displayed with the same color indicate the axes of the currently active working plane.

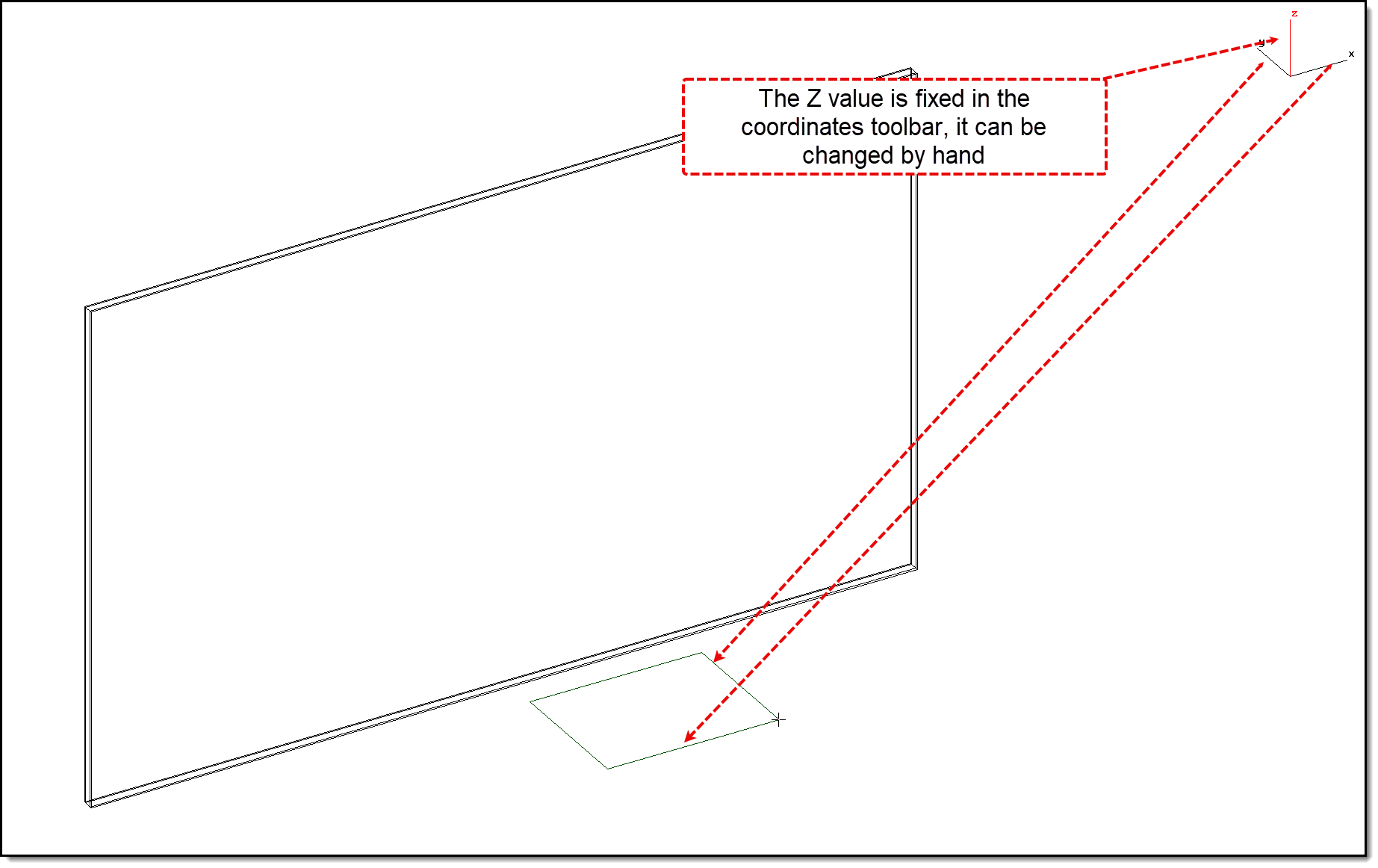

The Z axe is locked, you can change the locked axe by alt+c or starting from the view were the axe is not visible and than to go in axo, the value of locked axe youcan change by hand on the coordinates toolbar or by asking the point coordinates by the command located in info page of ribbon bar.

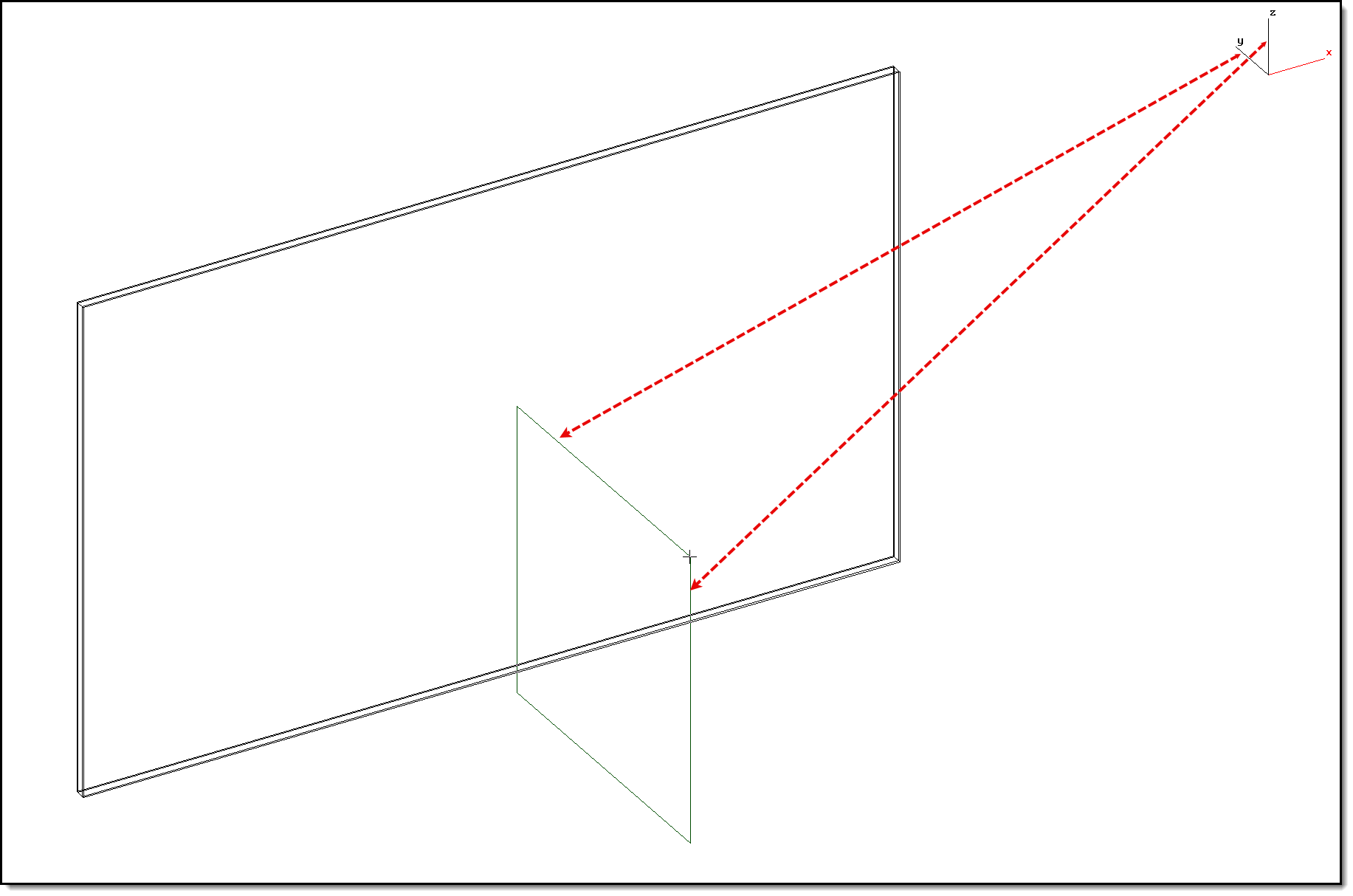

The X axe is locked, you can change the locked axe by alt+c or starting from the view were the axe is not visible and than to go in axo, the value of locked axe youcan change by hand on the coordinates toolbar or by asking the point coordinates by the command located in info page of ribbon bar.

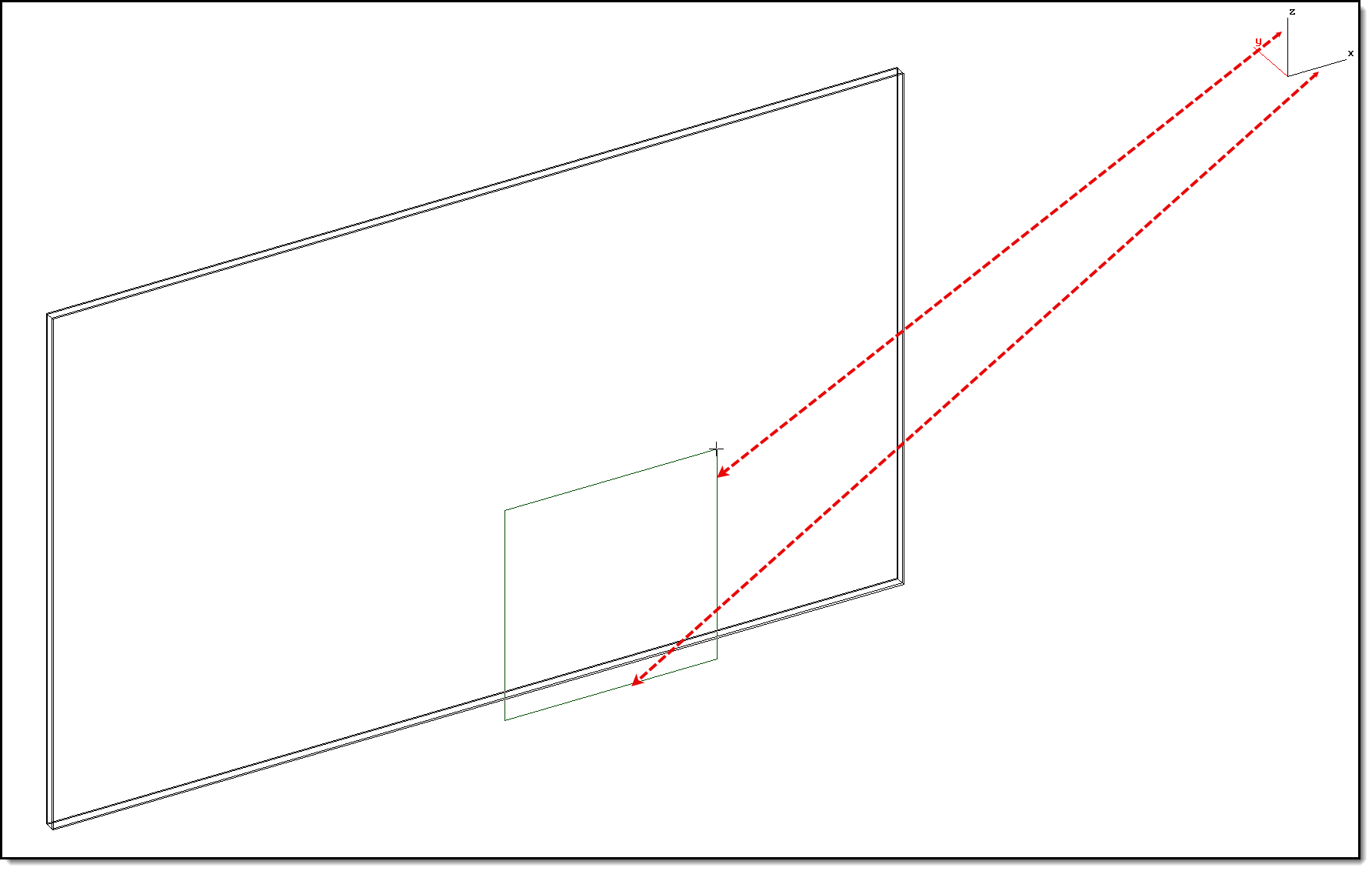

The Y axe is locked, you can change the locked axe by alt+c or starting from the view were the axe is not visible and than to go in axo, the value of locked axe youcan change by hand on the coordinates toolbar or by asking the point coordinates by the command located in info page of ribbon bar.
