Exporting DXF or DWG

Save as command is useful to export the ARC+ files to a DXF OR DWG format:

\saveas



image\ebx_1712504276.gif IMPORTANT: The old DXF/DWG converter is still available; you can access it using \dxfout, \dwgout commands.

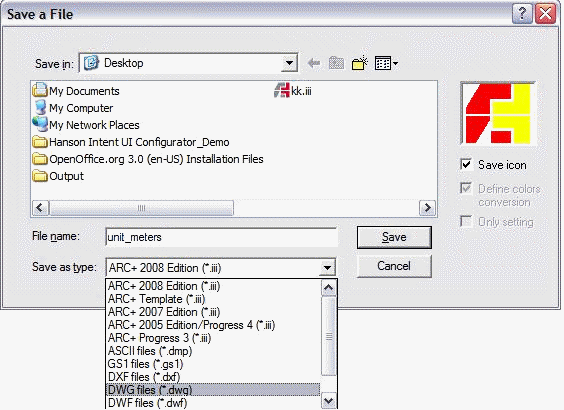

Select any DXF or DWG format from the Type pulldown list.

Click Save to start converting.

You must define the import parameters before starting the conversion.
