Wrapped Roof Tiles


This shader generates a pattern of roof shingles or roof tiles. The Type menu offers eight different styles: Flat, Scalloped, Diamond, Hexagonal, Classic, Espana, Spanish, and Roma. Examples of all eight patterns are shown below in Figure 0.0.0.23.

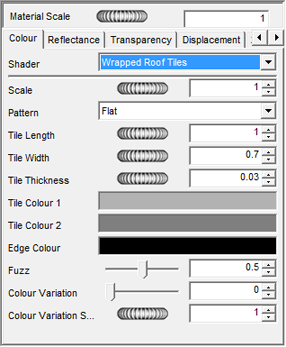

The dimensions and colors of the tiles are entered in the Dimensions and Colors option groups. The Variation slider determines how much color variation occurs on each tile.




Figure 0.0.0.24

The variation is displayed as a pattern of light and dark patches. The Variation Scale slider determines the size of the patches.





Figure 0.0.0.23

The 8 Roof Tiles patterns (a) Flat, (b) Scalloped, (c) Diamond,

(d) Hexagonal, (e) Classic, (f) Espana, (g) Spanish, and (h) Roma.
