Printing in PDF Format

To print your drawing as a PDF file using a "virtual printer", follow the steps below:

1 Check the Printer/Plotter box in the Device/ Image option of the Print Manager

2 Select the PDF printer from the selection list:

$image\ebx_829247797.gif$

$image\ebx_1693072387.gif$ REMARK : The "CutePDF Writer"which is a virtual printer installed by default during the ARC+ installation.

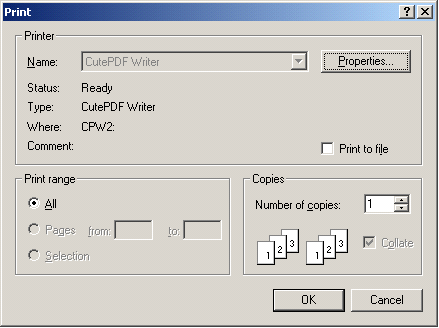

3 Click on the button $image\ebx_336791741.gif$ . A dialog box to configure the selected printer, appears.

$image\ebx_-251425897.gif$

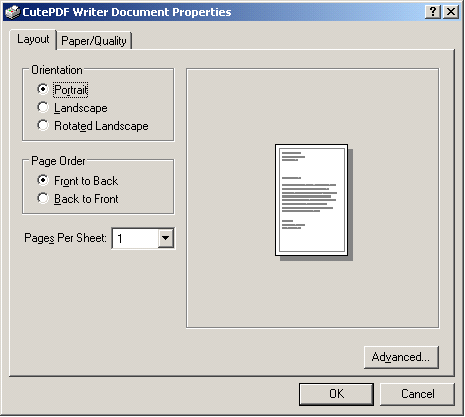

4 Click on $image\ebx_-969914418.gif$ to configure the selected printer driver as desired:

$image\ebx_-1058157031.gif$

5 Once the printer is configured, click OK to return to the Print Manager.

6 The Print Manager enables you to configure other printing parameters as well. (see details below)

7 At the end of the configuration click $image\ebx_-1787147649.gif$ to start printing.

$image\ebx_1693072387.gif$ REMARK : The configuration defined by you is saved automatically with the specified name. If the name is not specified it is saved as Default.
