Creating Circle Help Lines
Create a circular help line
\hcircl

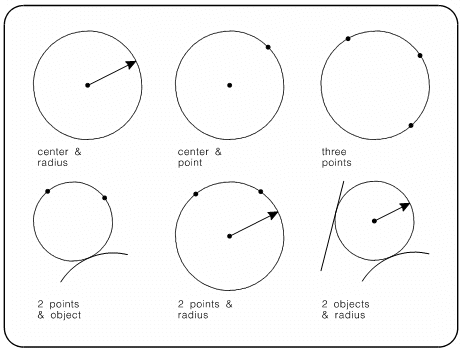

Select one of the options:
Center & radius
A help circle is created on the current working plane.
Center & point
A help circle is created on the working plane.
Two points
Specify 2 points to define diameter of the help circle. The circle is created on the current plane.
3 points
A help circle is created in the 3D plane through the three points.
2 points & object
A help circle is created in the 3D plane through the two circumference points and the existing line or arc. Note that the entity and the two points must be on the same plane.
2 points & radius
A help circle is created on the working plane.
2 objects & radius
The system displays a solution asking you to confirm it. Reject the confirmation request to display alternative solutions.
Define the points and parameters required for the option that you choose. The help circle is created.
