Autotrim

This command enables you to clip the uniform color margins of an image. This command can be very useful to delete unnecessary blank margins of a scanned image.

\imgedit autotrim@

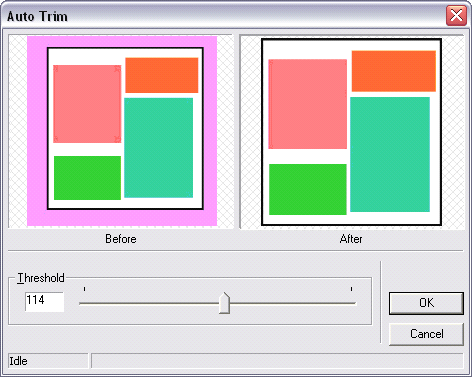

The system asks you to indicate an image to be modified. After you confirm your choice of image, ARC+ opens a dialog box that helps you control and view the modification:

$image\ebx_2042091791.gif$

This dialog box contains two "Before-After" windows for a dynamic preview of the modification. You can control the degree of clipping by using the potentiometer (the default value is zero = located at the extreme left) or by entering a numerical value between 0 and 199 (factors).

Click Ok to modify image or click Cancel to cancel the modification and exit the dialog box.

Before applying the modification, the system asks you to indicate a modification setting: apply the change only to the selected image (frame) or to the indicated image (frame) and all its copies.
